⭐ 1: Product Overview – IND FLEXI AB 470 DX DFS

Product Summary

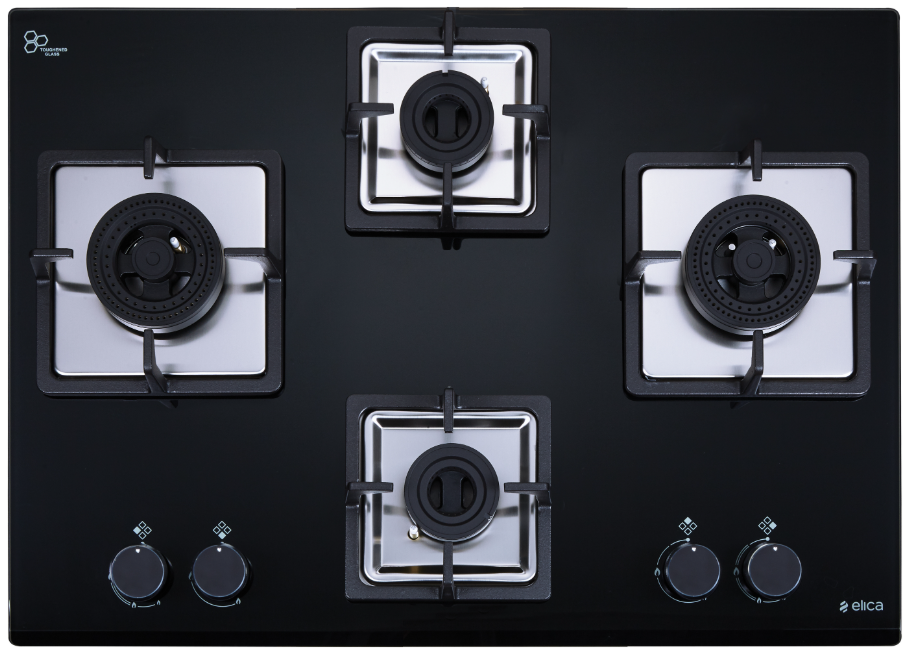

The IND FLEXI AB 470 DX DFS is a 4‑burner Flexi Hob‑Top designed for Indian cooking. It features brass heavy‑duty multi‑flame burners, auto ignition, sealed burner cups, and cast‑iron pan supports. Suitable for both built‑in and counter‑top installation.

Key Features

• 4 Brass Multi‑Flame Burners

• Auto Ignition (Battery Operated)

• Fully Sealed Burner Cups

• Cast Iron Pan Supports

• 70 cm Toughened Glass Top

• Flexi Hob‑Top Hybrid Design

Burner Output

• 2 × 2.9 kW (High Flame)

• 2 × 1.7 kW (Simmer)

Dimensions

• Product: 70 × 52 × 10.6 cm

• Cut‑Out: 66 × 48 × 5 cm


⭐ 2: Installation Guide – IND FLEXI AB 470 DX DFS

Pre‑Installation Requirements

• Ensure cut‑out size: 66 × 48 × 5 cm

• Gas line must be leak‑tested

• Use only ISI‑marked hose or copper pipe

• Keep electrical point accessible for auto ignition battery

Installation Steps

1. Place hob into the cut‑out ensuring proper leveling

2. Connect gas inlet using approved fittings

3. Insert new AA battery for auto ignition

4. Check all burners for proper flame

5. Verify no gas leakage using soap solution

6. Demonstrate operation to customer

Important Notes

• Do not seal hob with cement or silicone

• Maintain 30–40 cm distance from chimney

• Installation must be done by brand‑authorized technician

⭐ 3: Troubleshooting Guide – IND FLEXI AB 470 DX DFS

1. Auto Ignition Not Working

Possible Causes:

• Weak or dead battery

• Loose knob mechanism

• Moisture in spark area

Solutions:

• Replace AA battery

• Dry burner area

• Re‑align burner cap

2. Low Flame / Uneven Flame

Possible Causes:

• Blocked burner holes

• Moisture in burner

• Low gas pressure

Solutions:

• Clean burner holes with a pin

• Dry burner thoroughly

• Check regulator / cylinder

3. Burner Not Lighting

Possible Causes:

• Misaligned burner cap

• Faulty injector

• Gas blockage

Solutions:

• Re‑seat burner cap

• Clean injector

• Check gas flow

⭐ 4: Safety Guidelines – IND FLEXI AB 470 DX DFS

Do’s

• Keep burners clean

• Use flat‑bottom cookware

• Turn off gas after use

• Replace battery every 6–8 months

Don’ts

• Do not use oversized vessels

• Do not spill water on burners

• Do not use abrasive cleaners

• Do not block ventilation

⭐ 5: Maintenance Guide – IND FLEXI AB 470 DX DFS

Daily Cleaning

• Wipe glass top with mild detergent

• Clean burner caps and rings

• Remove food spills immediately

Weekly Maintenance

• Deep clean burner holes

• Check pan support stability

• Inspect ignition spark

Periodic Maintenance

• Replace ignition battery

• Check gas hose condition

• Service every 6–12 months

⭐ 6: Warranty Information – IND FLEXI AB 470 DX DFS

Standard Warranty

• 2 Years on product

• 2 Years on burners (brand‑specific)

Warranty Covers

• Manufacturing defects

• Ignition issues

• Burner defects

Warranty Does Not Cover

• Glass breakage

• Physical damage

• Liquid spills

• Unauthorized installation

⭐ 7: Operating Instructions – IND FLEXI AB 470 DX DFS

Before You Start

• Ensure gas supply is ON

• Check burners are dry and properly seated

• Insert a fresh AA battery for auto ignition

• Use flat‑bottom cookware for best performance

How to Use the Burners

1. Turn the knob anti‑clockwise to the ignition position

2. Auto ignition will spark automatically

3. Adjust flame between High / Medium / Simmer

4. Always start with high flame, then reduce as needed

Using High‑Flame Burners (2.9 kW)

Best for:

• Boiling

• Deep frying

• Pressure cooking

• Tadka

• Heavy cookware

Using Simmer Burners (1.7 kW)

Best for:

• Tea / Milk

• Slow cooking

• Dal / Khichdi

• Light frying

After Cooking

• Turn knob to OFF position

• Turn off gas supply if not in use

• Allow burners to cool before cleaning

Important Usage Tips

• Do not use oversized vessels that cover multiple burners

• Avoid spilling water on burners

• Do not operate with wet hands

• Keep ventilation open during cooking

⭐ 8: Cleaning & Care – IND FLEXI AB 470 DX DFS

Daily Cleaning

• Allow hob to cool completely

• Wipe glass top with mild liquid detergent

• Clean burner caps and rings with a soft brush

• Remove food spills immediately to avoid stains

Weekly Cleaning

• Remove burners and wash with warm soapy water

• Clean burner holes using a pin (do not enlarge holes)

• Wipe cast iron pan supports and dry thoroughly

• Clean knobs with a damp cloth (do not use chemicals)

Deep Cleaning (Monthly)

• Inspect burner cups for blockages

• Clean vertical injectors gently

• Check pan support rubber stoppers

• Ensure ignition points are dry and free from grease

Do Not Use

• Acidic cleaners

• Steel wool / abrasive pads

• Excessive water on burners

• Harsh chemicals on glass top

⭐ 9: Customer FAQs – IND FLEXI AB 470 DX DFS

1. Does this hob have auto ignition?

Yes, it has battery‑operated auto ignition.

2. What type of burners are used?

Heavy‑duty brass multi‑flame burners for Indian cooking.

3. Can this be used as a built‑in hob?

Yes, it is a Flexi Hob‑Top — works as built‑in or counter‑top.

4. What is the cut‑out size?

66 × 48 × 5 cm

5. How many burners are high flame?

Two burners are 2.9 kW high flame, and two are 1.7 kW simmer.

6. Are the burner cups sealed?

Yes, they are fully sealed to prevent spills entering the body.

7. What type of pan supports are used?

Heavy‑duty cast iron pan supports.

8. What battery is required for ignition?

One AA battery.

⭐ 10: Installation Requirements (Technician Guide)

Pre‑Installation Checklist

• Verify cut‑out size: 66 × 48 × 5 cm

• Ensure gas line is leak‑tested

• Keep electrical point accessible for ignition battery

• Confirm LPG/PNG type with customer

• Ensure proper ventilation in kitchen

Tools Required

• Adjustable spanner

• Soap solution for leak test

• Screwdriver set

• Level tool

• Approved gas hose / copper pipe

Installation Steps

1. Place hob into cut‑out ensuring level alignment

2. Connect gas inlet using ISI‑marked fittings

3. Insert new AA battery

4. Test each burner for flame quality

5. Perform leak test with soap solution

6. Explain operation and safety to customer

Important Notes

• Do NOT seal hob with cement or silicone

• Maintain 30–40 cm distance from chimney

• Only authorized technicians should install

⭐ 11: Gas Safety Checklist – IND FLEXI AB 470 DX DFS

Daily Safety

• Turn off gas regulator after use

• Keep burners clean and dry

• Ensure proper ventilation

Monthly Safety

• Check gas hose for cracks or wear

• Ensure burner caps are properly seated

• Inspect ignition spark

When to Stop Using Immediately

• Smell of gas

• Yellow or unstable flame

• Clicking sound without ignition

• Leakage detected during soap test

Emergency Steps

• Turn off regulator

• Open windows for ventilation

• Do NOT operate electrical switches

• Contact authorized service technician

⭐ 12: Warranty Terms – IND FLEXI AB 470 DX DFS

Standard Warranty Coverage

• 2 Years Comprehensive Warranty on the product

• 2 Years Warranty on Brass Burners (brand‑specific)

• 1 Year Warranty on Ignition System (battery‑operated components)

• 1 Year Warranty on Valves & Gas Flow Components

What the Warranty Covers

• Manufacturing defects

• Ignition malfunction (non‑physical damage)

• Burner performance issues

• Gas flow irregularities due to internal component defects

• Faulty knobs or internal mechanism issues

What the Warranty Does NOT Cover

• Glass Breakage (accidental or impact damage due to improper use)

• Physical Damage caused by misuse or mishandling

• Damage due to liquid spills entering burners

• Damage from unauthorized installation

• Issues caused by non‑ISI hoses, rubber tubes, or faulty regulators

• Wear & tear of pan supports, rubber stoppers, or battery

• Damage due to insects, rodents, or moisture accumulation

Customer Responsibilities

• Use only ISI‑marked gas hose or copper pipe

• Ensure proper ventilation in the kitchen

• Replace AA battery periodically

• Keep burners clean and dry

• Report issues immediately to authorized service

Warranty Claim Process

1. Customer provides invoice copy and warranty booklet / card

2. Technician inspects the product

3. Defect is verified under warranty

4. Repair or replacement of part is processed as per brand policy

Warranty Void Conditions

• Unauthorized repair or modification

• Incorrect installation

• Use of non‑compatible gas type (LPG/PNG mismatch)

• Evidence of tampering with internal components
