Hob Elica Flexi 4B 0491 3 FB DFS TX – 90 cm Brass Burner Hob

Elica Hob Flexi 4B 491 3 FB DFS TX – Product Information & Support Guide


Hob Elica Flexi 4B 491 3 FB DFS TX – Product Information & Support Guide

Overview

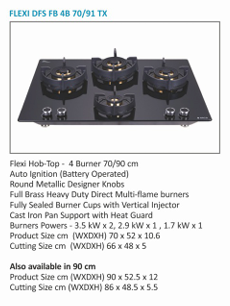

The Hob Elica Flexi 4B 0491 3 FB DFS TX is a 90 cm hob‑top featuring full brass burners, auto ignition, sealed burner cups, and cast iron pan supports designed for heavy Indian cooking.

Specifications

  • 4 Full Brass Burners

  • Burner Power: 3.5 kW × 2, 2.9 kW × 1, 1.7 kW × 1

  • Auto Ignition (Battery)

  • Cast Iron Pan Supports

  • Sealed Burner Cups

  • Product Size: 90 × 52.5 × 12 cm

  • Cutting Size: 86 × 48.5 × 5.5 cm

Installation Requirements

  • Built‑in compatible

  • Ensure correct cutting size

  • Install only by authorized technician

  • Maintain ventilation around hob

Usage Tips

  • Use correct burner size for utensil

  • Keep burners clean

  • Replace ignition battery when weak

  • Avoid oversized utensils on small burner

Troubleshooting

Burner Not Igniting

  • Check battery

  • Clean burner holes

  • Align burner cap

Low Flame

  • Clean burner

  • Check regulator

  • Ensure proper gas pressure

Yellow Flame

  • Clean injector

  • Re‑seat burner

Knob Hard to Turn

  • Clean moisture

  • Do not force

  • Contact service if persists

When to Contact Service

  • Gas smell

  • Glass damage

  • Ignition failure

  • Flame instability

❓ DESK FAQs

Q1. What is the size of this hob? 90 × 52.5 × 12 cm.

Q2. Is it auto ignition? Yes, battery‑operated.

Q3. Are the burners brass? Yes, full brass.

Q4. Is it built‑in compatible? Yes, cutting size is 86 × 48.5 × 5.5 cm.
