Water Purifier - Aquaguard Aspire Designo UTC RO+UV Copper 2. Installation Guide
🛠️ Installation Steps
🔧 1. Choose Installation Location

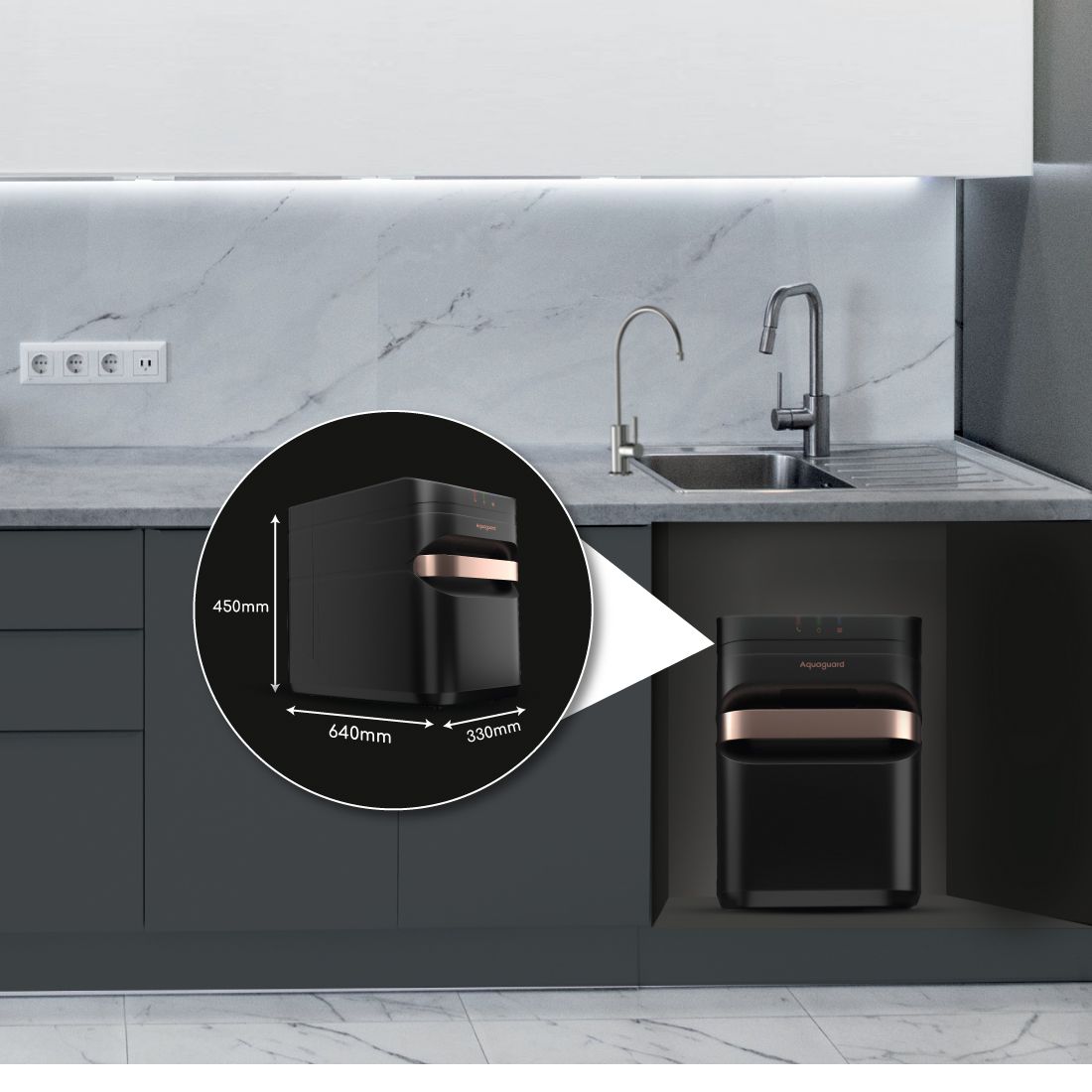

Under the kitchen sink
Near a 3‑pin power socket
Close to inlet water line
🔧 2. Install Pre‑Filter
Mount pre‑filter housing
Connect inlet pipe
Tighten using wrench
🔧 3. Connect Inlet Pipe
Attach pipe from pre‑filter to purifier inlet
Ensure leak‑proof connection
🔧 4. Fix the Faucet
Drill 12mm hole on sink/counter
Install purified water faucet
Tighten nut from below
🔧 5. Connect RO Outlet to Faucet
Use food‑grade tubing
Ensure no bends or kinks
🔧 6. Connect Waste Water Line
Fix drain clamp on sink pipe
Insert waste line securely
🔧 7. Power On the Unit
Connect to 3‑pin socket
Allow tank to fill completely
🔧 8. Flush First Tank
Discard first full tank
System is now ready for use
